12’ length, 4’ 2½” beam. Small rowing craft with wineglass transom. Carvel planking on steam bent frames with three rowing stations. Original in MMM collection: 78.96.

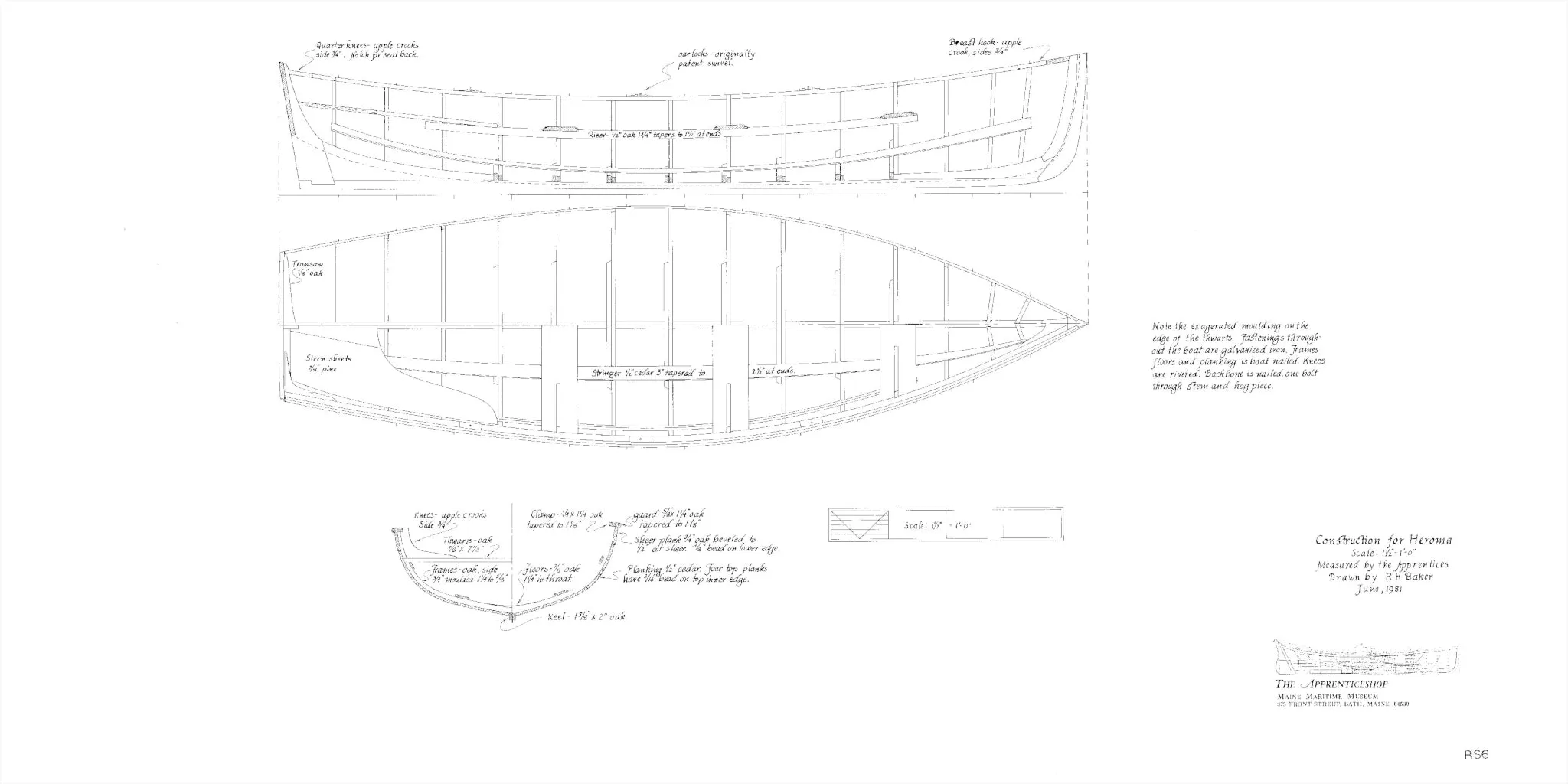

Two sheets: lines, offsets, construction details. Lines taken by Museum apprentices. Drawn by R. H.Baker.

Scale: 1 ½”=1’

Link for digital download of plans will be available after purchase and sent to your email.
